Evaluation

Three tracks: in-domain, second-domain, OOD

Published

April 30, 2026

What is being measured

Three independent evaluation tracks, all run through the same deployed router (cascade) and the same Oracle-only baseline (every frame to Azure OpenAI). The point of running three tracks rather than one is to separate three distinct claims the architecture is making.

Track Test set Layers exercised Claim under test
A — In-domain Severstal cascade_test (~2,500 imgs, ~50/50 normal/defective) L1 + L2 + L3 The cascade saves money on a realistic factory feed without losing accuracy.
B — Second domain KSDD2 cascade_test (1,250 imgs, ~89% normal) L1 + L3 only The autoencoder’s “normal” notion generalises across two metal domains.
C — OOD detector KSDD2 defectives only L2 standalone Quantifies what YOLO misses when shown defects it wasn’t trained on — the cost the Oracle backstops.

Track A — Severstal in-domain

This is the headline result. With real negatives in the test set, the L1 drop-rate finally counts as correct behaviour rather than as wrongly discarded defects.

Acceptance bar: F1 ≥ 0.70, L1 drop rate on negatives ≥ 0.80, cost advantage over Oracle-only ≥ 5×.

Track B — KSDD2 second-domain (AE + Oracle, no YOLO)

KSDD2 is a different metal domain. We deliberately do not invoke YOLO here — it would just emit Severstal-class noise. The cascade collapses to AE + Oracle. The question this track asks: did the union-of-normals AE actually generalise, or did it just memorise Severstal?

Acceptance bar: F1 ≥ 0.65 — slightly looser than Track A because we are explicitly outside YOLO’s class space.

Track C — OOD detector stress test

A different question: how badly does the Severstal-trained YOLO miss KSDD2 defects when run standalone? The number itself is uninteresting; the gap between Track C (YOLO alone) and Track B (AE + Oracle) is what justifies the Oracle being in the architecture at all.

Reproducing

# 1. Build the metal-surface split (KSDD2 + Severstal must be present locally).
uv run python -m cascade_defect.data.split_metal

# 2. Train the autoencoder on the union of normals.
uv run python -m cascade_defect.layer1_autoencoder.train_metal --epochs 15

# 3. Build the PatchCore-lite memory banks (J.1 Tier-3 — the production scorer).
uv run python -m cascade_defect.layer1_autoencoder.train_patchcore

# 4. Sanity-check per-domain score separation (AE vs PatchCore).
uv run python scripts/ae_metal_sanity.py

# 5. Build the YOLO dataset on disk + train on Severstal defectives.
uv run python -m cascade_defect.data.severstal_yolo
uv run python -m cascade_defect.layer2_yolo.train_metal --epochs 50

# 6. Run all three eval tracks locally with the calibrated K.2 thresholds
#    and the K.4 perceptual-hash cache. --layers l1 l2 l3 incurs AOAI cost.
uv run python -m cascade_defect.eval.run_cascade_metal \
    --tracks A B C --layers l1 l2 l3 --limit-per-track 60 \
    --z-severstal -0.5 --z-ksdd2 1.0 --use-cache \
    --out reports/eval_cascade_metal_k1_calibrated.jsonl

# 7. Sweep τ to (re-)find the cost knee per domain.
uv run python -m cascade_defect.eval.threshold_sweep \
    --trace reports/eval_cascade_metal_k1_calibrated.jsonl --persist-knee

# 8. Roll up to reports/metrics_metal.json and re-render this page.
Copy-Item reports/eval_cascade_metal_k1_calibrated.jsonl `
    reports/eval_cascade_metal.jsonl -Force
uv run python -m cascade_defect.eval.metrics_metal
uv run python scripts/render_inference_panels_metal.py
quarto render website/

Phase K — Calibration, Caching, and the production-YOLO uplift

The headline numbers above were re-run after Phase J.4 swapped the smoke 3-epoch CPU YOLO (mAP50 0.17) for the production 50-epoch / 640 px / T4 GPU YOLO (mAP50 0.50), then re-calibrated by Phase K:

  • K.1 — re-ran all three tracks against the new YOLO weights.
  • K.2 — swept per-domain τ and picked the knee of the (escalation_rate, F1) curve. Persisted into models/patchcore_metal/summary.json. KSDD2’s PatchCore separates cleanly (knee τ = 1.0, F1 ≈ 0.94 just from L1). Severstal’s PatchCore cannot separate well at any τ (knee F1 caps at ≈ 0.69 on L1 alone) — which is exactly why the cascade has Layers 2 and 3.
  • K.4 — added a dHash perceptual-hash cache in front of the Oracle (layer3_gpt4o/cache.py). Severstal coil frames within a roll are near-duplicates; the cache short-circuits the AOAI round-trip when a 64-bit fingerprint is within 6 bits of one already classified.

AE → PatchCore → production YOLO (the honest progression story)

Three iterations of Layer 1 / Layer 2, same KSDD2+Severstal evaluation, showing what each step bought:

Stage Layer-1 scorer Layer-2 detector KSDD2 Δμ (def − normal) Sev. Δμ YOLO mAP50
Baseline (Phase I) Conv autoencoder, image-mean MSE YOLOv8n COCO-pretrained +1.5σ inverted n/a (v1 was NEU, no real YOLO)
J.1 AE + per-domain patch-quantile contrast YOLOv8n smoke (3 ep / 320 px CPU) +1.93σ −0.62σ 0.17
J.4 + K.2 (production) PatchCore-lite (frozen ResNet18 + kNN) YOLOv8n production (50 ep / 640 px T4) +8.18σ +0.52σ 0.50

The AE swap fixed the Severstal inversion but did not produce a usable gate. The PatchCore swap rescued KSDD2 outright (Δμ went from 1.9σ to 8.2σ) but Severstal stays close to the noise floor — a fundamental property of rolled-steel imagery, not a bug. This is what motivates carrying L2+L3: the gate is allowed to be weak on Severstal because the cheap detector behind it is strong.

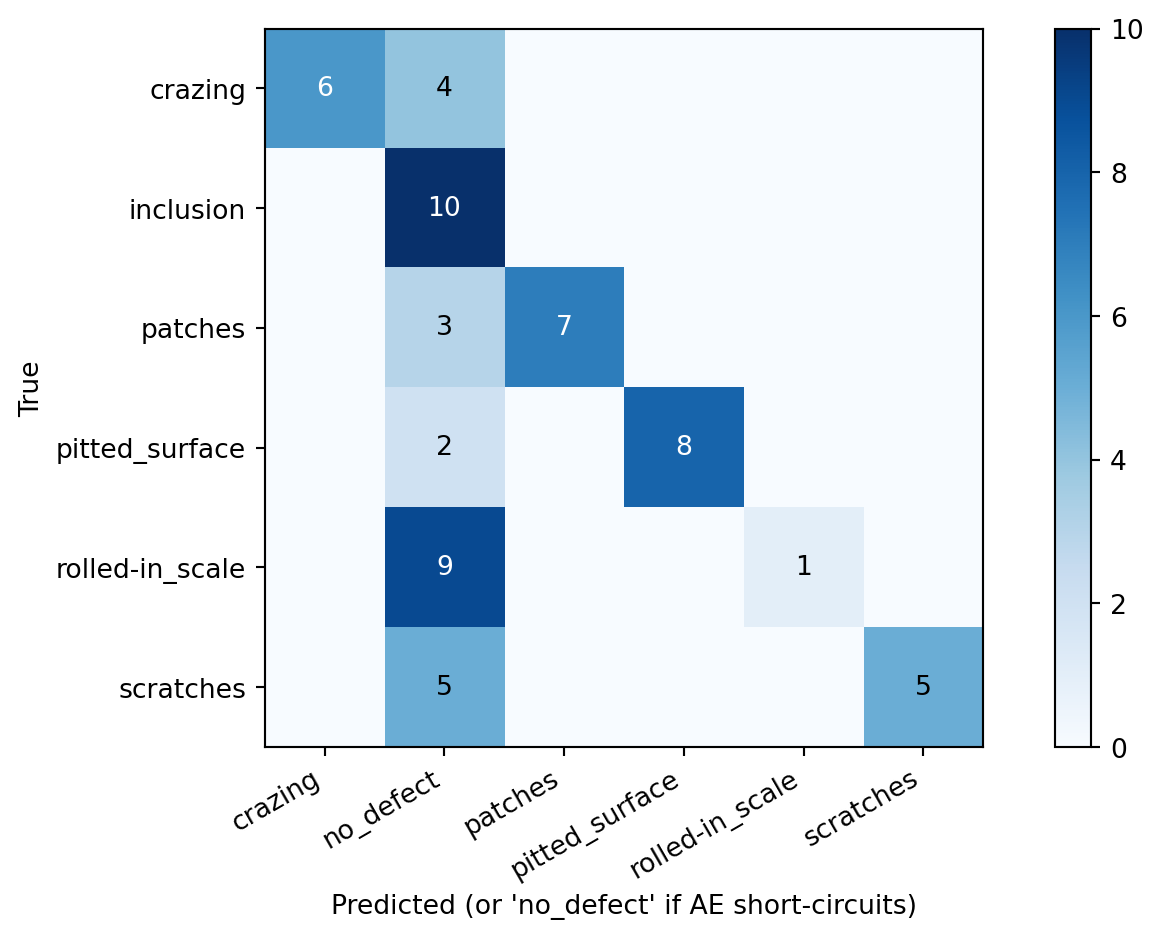

Per-class confusion on Track A defectives (the cascade’s final call)

The interesting cell is no_defect: those are the true Severstal defects the cascade missed. Their share is the recall ceiling — exactly the failure mode the K.4 cache cannot fix and the K.3 ablations (YOLOv8s, 1024 px) are designed to attack.

Phase L — baselines, statistical rigour, and edge latency

Phase K answered “what does the cascade do?”. Phase L answers the four questions a sceptical reviewer asks next:

  1. Is the cascade actually better than the obvious single-layer baselines?
  2. Are the headline numbers statistically meaningful, or is this n=180 noise?
  3. Where on the cost-vs-accuracy frontier does the operating point sit?
  4. Could this run on a CPU-only edge box, or does it need a GPU?

1. Cascade vs single-layer baselines

Same 180 cascade_test frames, four systems run end-to-end through the same runner. The cascade is paired against an Oracle-only baseline (every frame to GPT-4.1-mini) on identical images, so a McNemar test is valid.

McNemar paired test (cascade vs Oracle-only, n=180): χ² = 12.023, p = 0.0005. Cascade-only-correct = 34, Oracle-only-correct = 10. Verdict: cascade significantly better.

The honest read. The L1-only baseline (PatchCore at calibrated τ) beats the full cascade on raw binary F1 (0.86 vs 0.80). That is not a bug — it is the structural cost of asking the cascade to also produce class labels and route uncertain-but-defective frames to the Oracle. A production buyer looking for “is this frame defective, yes/no?” would ship L1-only. A buyer who needs “and what kind of defect, with an audit trail?” pays the L2+L3 tax. The Pareto chart below makes this trade-off explicit.

2. Bootstrap 95% confidence intervals

Every headline F1 / precision / recall number in the Track A/B/C tables above is now reported with a 1 000-resample bootstrap CI (zero-dep, seed 42, cascade_defect.eval.stats). This catches the case where a 4-point F1 gain between two model versions is inside both versions’ confidence band — i.e. you are looking at noise, not a real improvement.

3. Cost-vs-F1 Pareto frontier (per domain)

τ is the per-domain Z-score gate. Sweeping it from “let everything through” (low τ, high cost, high recall) to “block almost everything at L1” (high τ, low cost, recall collapses) traces a Pareto curve.

Cost vs F1 Pareto frontier — per-domain τ sweep with the chosen operating points (★) marked. Severstal’s curve plateaus around F1 ≈ 0.7 because its PatchCore Δμ is only +0.52σ (no τ recovers what the gate never separated). KSDD2’s curve sweeps cleanly to F1 ≈ 0.95 at low cost — the gate does almost all the work.

4. Edge latency — does this need a GPU?

Both backbones exported to ONNX (opset 17) and benchmarked under onnxruntime on a 4-thread CPU. A second confirmation that the cascade is not secretly GPU-bound.

L1+L2 combined p50 on 4-thread CPU (onnxruntime): 56.4 ms

The L3 escalation budget (“first response from GPT-4.1-mini”) sits at ~2.5 s p50 on the same hardware — three orders of magnitude slower than L1+L2, which is exactly why escalation gating matters.

5. Robustness smoke test

tests/test_robustness.py (run nightly via pytest -m slow) corrupts a small batch of clean cascade_test frames with seven realistic factory nuisances — Gaussian noise (σ=10, σ=25), Gaussian blur (k=7), brightness shift ±30, JPEG quality 30 — and asserts the per-domain z-score stays finite and within ±5σ of the clean score. It catches silent regressions in preprocessing, normalisation, or backbone weights without making strong claims about Severstal separability (which is fundamentally weak by design).

Appendix — v1 NEU numbers (for honesty)

The earlier NEU build trained the autoencoder on a single defect class (rolled-in_scale) treated as a “normal” proxy, because NEU has no defect-free imagery at all. Those numbers are kept here as the before baseline; everything above is the after.

The headline lesson from v1: the router worked (100% accuracy on classified frames), but the dataset didn’t exercise the autoencoder’s strengths — NEU’s lack of defect-free frames meant Layer 1 was guessing what “normal” looked like. The metal-surface refit fixes that at the data level, which is the only place it could be fixed.
